Specifications

Technical specifications​

Basic specifications​

  • CPU: Quad-core ARM Cortex-A55, Neon and FPU
  • GPU: G52 2EE
  • NPU: RK NN, 1Tops
  • DDR: 2/4GB 32-bit LPDDR4
  • Storage: 16/32GB eMMC 5.1

Hardware​

  • Supply: 3.3 VDC and 5.0 VDC, recommended supply current is 2A
  • Temperature range: 0 to +60℃ operating
  • Dimensions: 50mm x 50mm x 5mm
  • Total interfaces on BGA: 536 pins
  • Video Decoder: 4KP60 H.264/H.265/VP9
  • Video Encoder: 1080P60 H.264/H.265
  • ISP: 8M ISP, HDR
  • MIPI_CSI: MIPI-CSI2, 1×4-lane/2×2-lane, 2.5Gbps/lane
  • DVP/CIF: IO: 150MHz, Support BT.656/601/1120
  • Display: RGB, LVDS/MIPI DSI, HDMI, eDP, Eink
  • SDIO: SDIO 3.0 x3
  • Peripheral:
    • USB 2.0 HOST, USB2.0 OTG
    • USB3.0 OTG, USB3.0 HOST, SATA 3.0 x3, PCIE 2.1(1x1Lane), QSGMII x1, Combo with 3 Serdes Lanes
    • PCIE3.0 1 ×2Lanes/2 ×1Lane@8Gbps
  • Ethernet: 2x GMAC (10/100/1000M)
  • Audio: 1x 8ch I2S/TDM, 2x2ch I2S 8ch PDM, 1x SPDIF OUT
  • Others: 10x UART, 4x SPI, 16x PWM,6x I2C,3x CAN FD,8x SAR-ADC
  • OTP: OTP (Size 8K)
  • Crypto: SM3/4, TEE, Trustzone

System​

  • System: Historical software support listed in the data sheet: Android 11.0, Ubuntu 18.04, Ubuntu 20.04. Current Mixtile OS images are built for the Edge 2 board; see the Edge 2 downloads page.
  • Advanced functions: Provide Linux container on Android, deploy Linux applications seamlessly on Android

Block diagram​

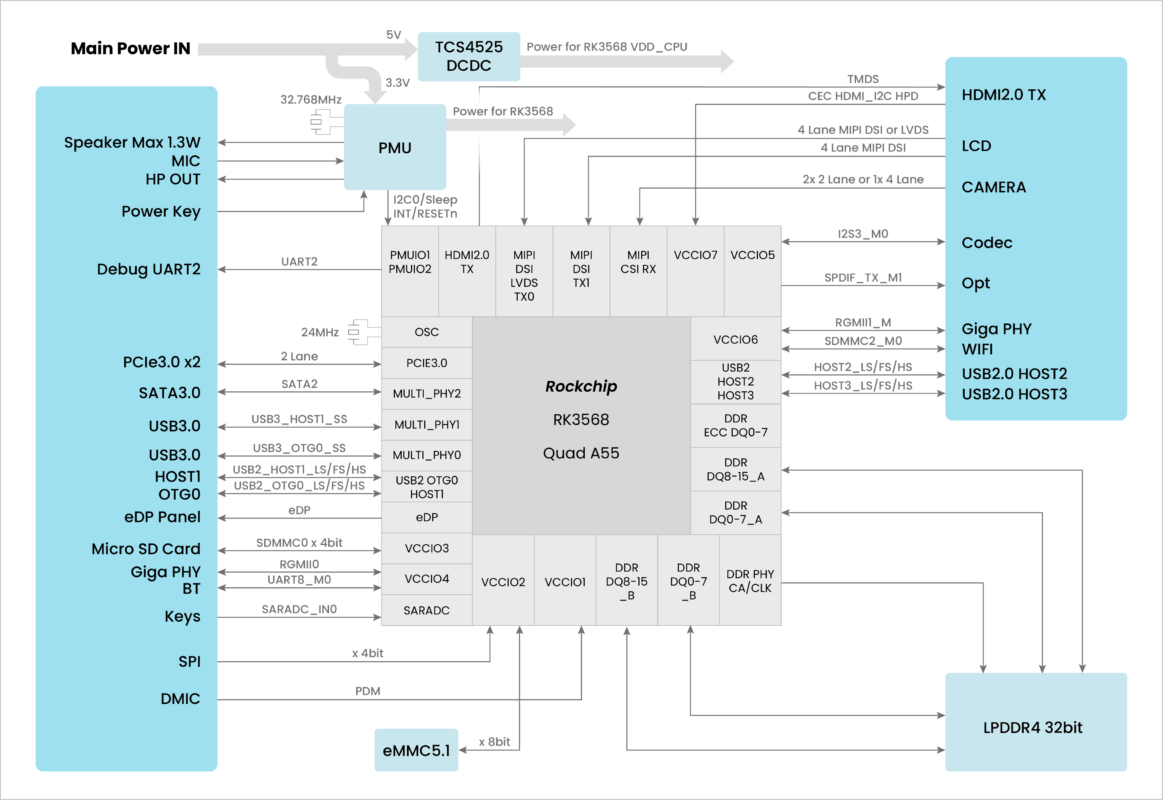

Block diagram of Core 3568: the RK3568 with the PMU, LPDDR4 and eMMC on the module, and the interfaces it brings out to the carrier board

Product dimensions​

Core 3568 size: 50 mm x 50 mm x 5 mm

Top view of Core 3568​

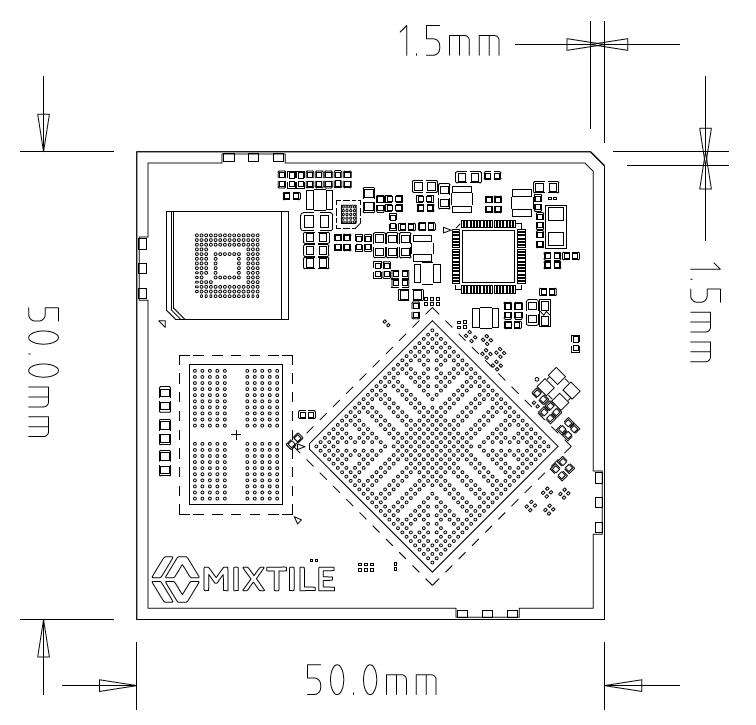

Top view drawing of Core 3568, 50.0 mm x 50.0 mm, with the 1.5 mm chamfered corner at the upper right

Bottom view of Core 3568​

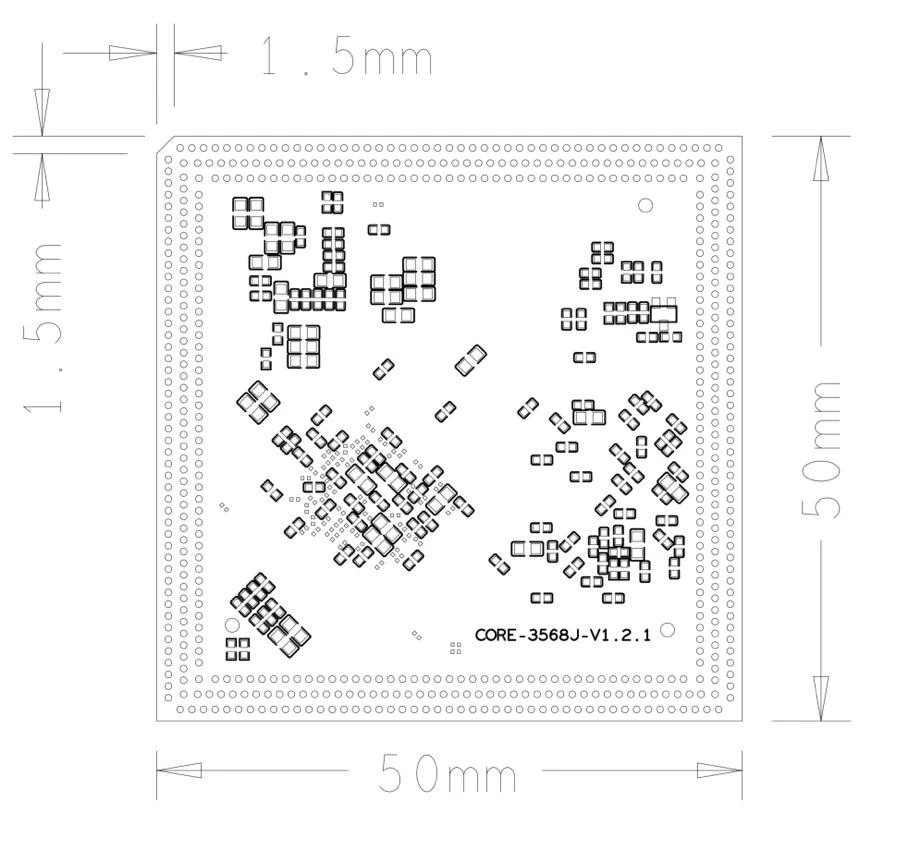

Bottom view drawing of Core 3568, 50.0 mm x 50.0 mm, with the pads along the edges and the 1.5 mm chamfered corner at the upper left

Top view of carrier board for Core 3568​

Carrier board size: 50 mm x 50 mm x 1.6 mm

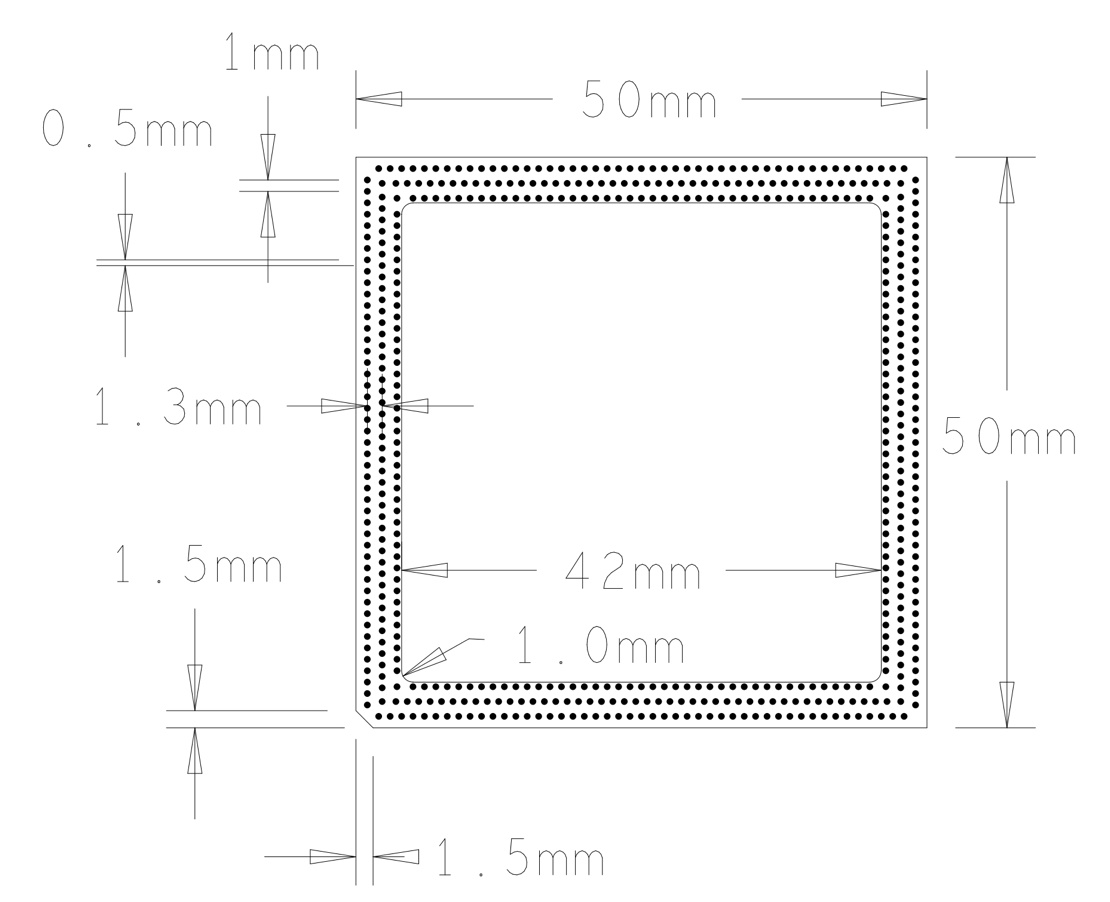

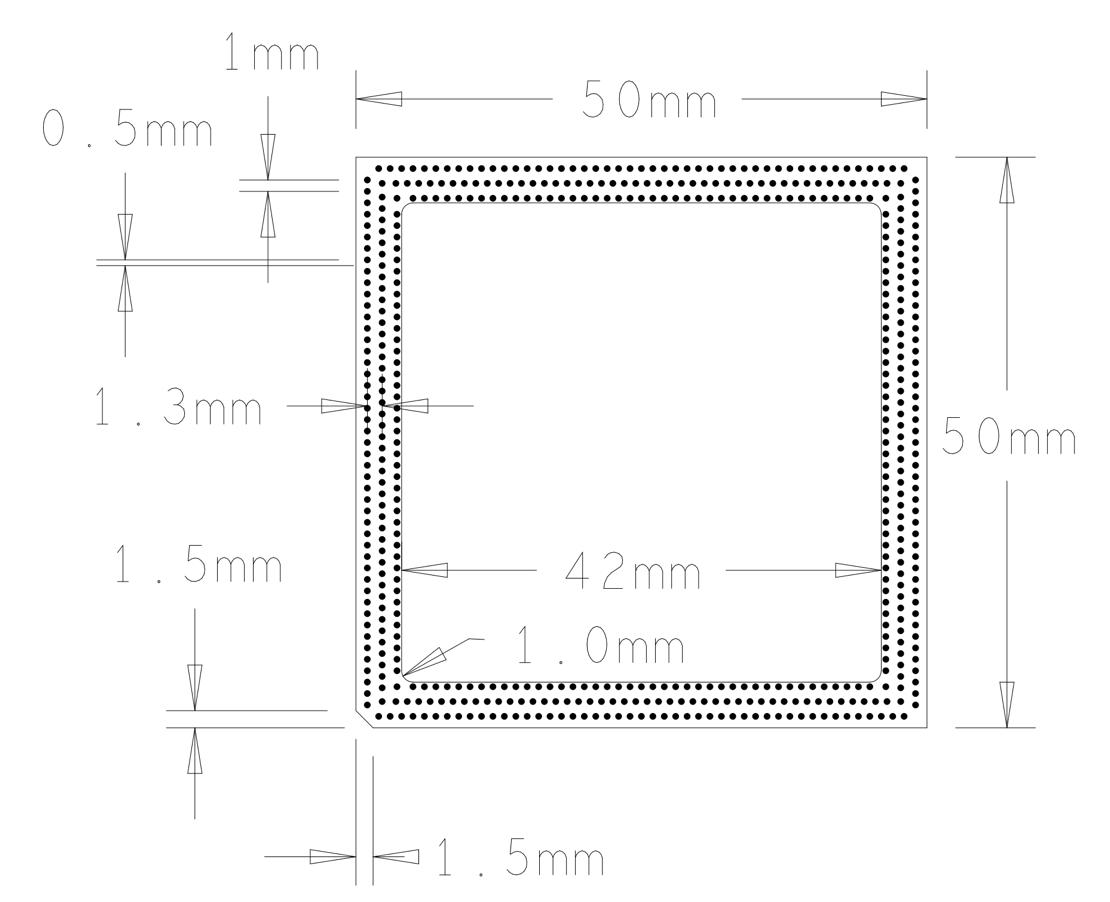

Top view drawing of the carrier board: 50 mm x 50 mm outline, 42 mm inner dimension with 1.0 mm corner radius, 1.5 mm chamfer, and 0.5 mm, 1 mm and 1.3 mm pad dimensions

Bottom view of carrier board​

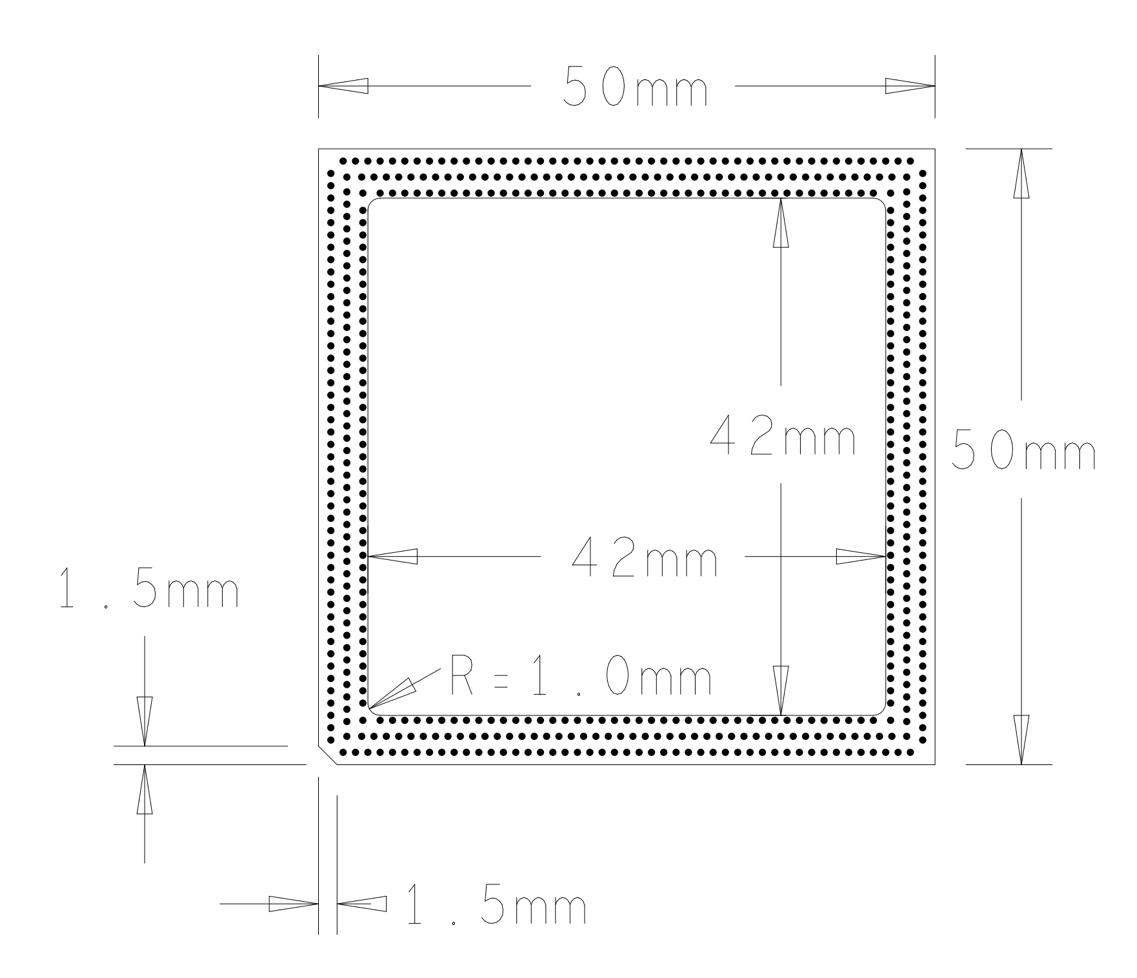

Bottom view drawing of the carrier board: 50 mm x 50 mm outline, 42 mm x 42 mm inner dimensions with R = 1.0 mm corners, and 1.5 mm chamfer
